A420 WPL6 vs A234 WPB: Key Differences, Composition, and Applications
In the world of industrial piping systems, A420 WPL6 and A234 WPB are two of the most commonly used materials for manufacturing butt-weld pipe fittings. Both are designed to withstand pressure, temperature variations, and harsh environments, but their distinct chemical compositions and temperature ratings make them suitable for different service conditions. Understanding the difference between A420 WPL6 vs A234 WPB is crucial for engineers, fabricators, and buyers to ensure optimal performance and cost-efficiency in their piping projects.
What is A234 WPB?
ASTM A234 WPB is a standard specification for wrought carbon steel and alloy steel pipe fittings intended for moderate to high-temperature service. The designation “WPB” stands for Wrought Pipe Fitting Grade B, where the letter “W” indicates “wrought” and “PB” signifies “Grade B” of carbon steel.

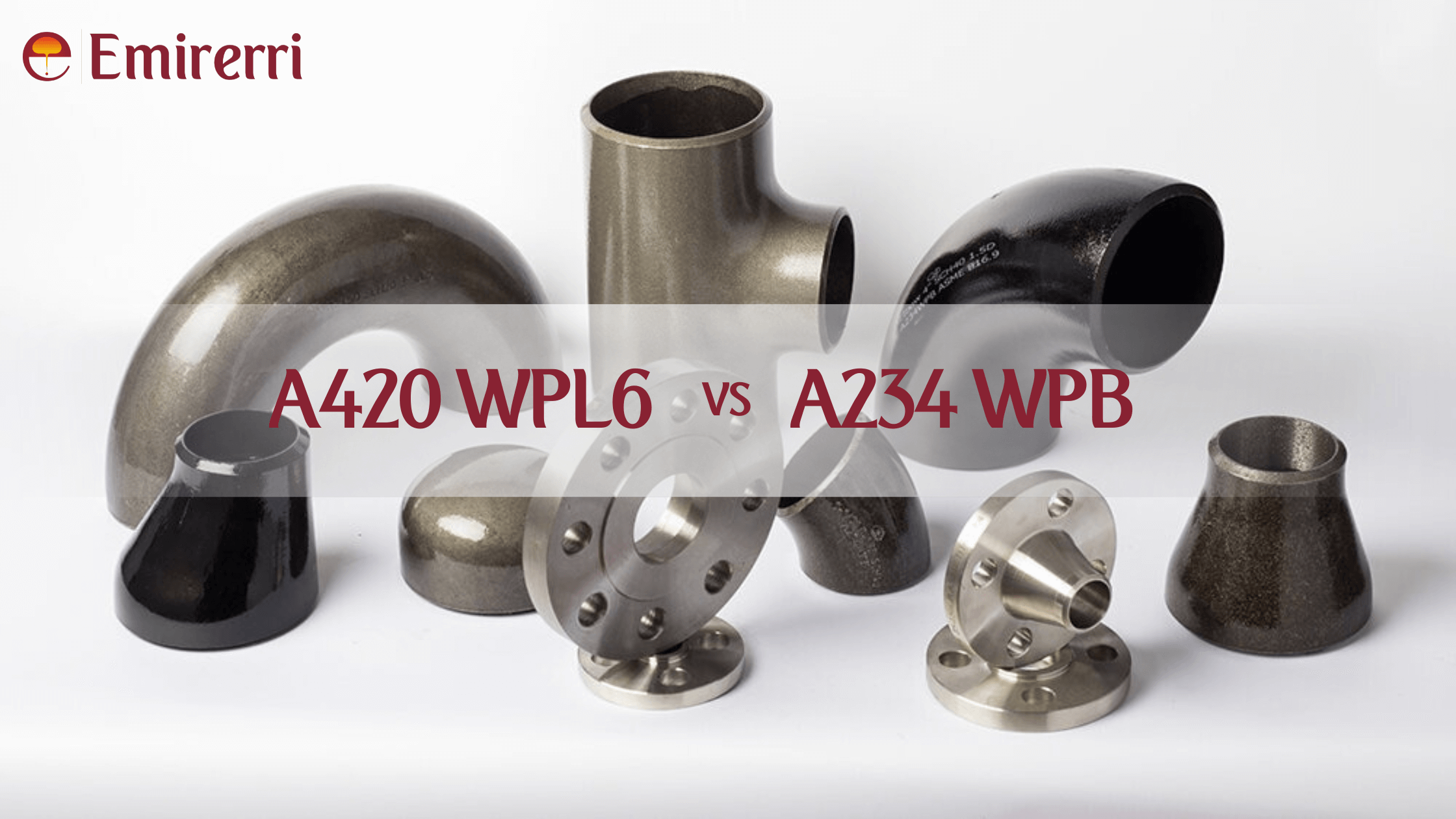

A234 WPB pipe fittings are widely used in pressure piping systems and pipelines for oil, gas, petrochemical, and power generation industries. These fittings are commonly produced in the form of elbows, tees, reducers, caps, and bends.
Key Features of ASTM A234 WPB:
- Excellent mechanical strength and toughness
- Suitable for high-temperature service (up to 425°C / 800°F)
- Good weldability and formability
- Widely available and cost-effective
What is A420 WPL6?
ASTM A420 WPL6 covers wrought carbon steel and alloy steel fittings that are used in low-temperature pressure piping systems. The designation “WPL6” represents “Wrought Pipe fitting, Low-temperature service, Grade 6.”
These fittings are used where impact toughness at low temperatures is critical, such as in cryogenic and Arctic conditions, refrigeration plants, and offshore applications.
Key Features of ASTM A420 WPL6:
- Specifically designed for low-temperature service (down to -46°C / -50°F)
- Superior impact resistance in cold climates
- Good weldability and toughness
- Typically normalized or tempered for improved strength
A420 WPL6 vs A234 WPB: Chemical Composition Comparison
While both materials are carbon steels, their chemical compositions differ slightly to suit their temperature range and mechanical requirements.
| Element | A234 WPB (%) | A420 WPL6 (%) |
| Carbon (C) | 0.30 max | 0.30 max |
| Manganese (Mn) | 0.29–1.06 | 0.50–1.35 |
| Phosphorus (P) | 0.050 max | 0.035 max |
| Sulfur (S) | 0.058 max | 0.040 max |
| Silicon (Si) | 0.10 min | 0.15–0.30 |
| Nickel (Ni) | — | 0.40 max |
| Chromium (Cr) | — | 0.30 max |
| Molybdenum (Mo) | — | 0.12 max |
| Copper (Cu) | — | 0.40 max |
Observation:
- A420 WPL6 contains tighter controls on sulfur and phosphorus and often includes small amounts of nickel to enhance low-temperature toughness.
- A234 WPB has a simpler composition, focusing on high-temperature strength and cost-efficiency.
Mechanical Properties Comparison
| Property | A234 WPB | A420 WPL6 |
| Tensile Strength (MPa) | 415 min | 415 min |
| Yield Strength (MPa) | 240 min | 240 min |
| Elongation (%) | 20 | 20 |
| Impact Test | Not required (unless specified) | Mandatory (Charpy V-notch at -46°C) |
Key Difference:
The primary difference lies in impact testing requirements. A420 WPL6 fittings undergo Charpy V-notch impact testing to ensure reliable performance under freezing conditions, while A234 WPB fittings are not required to pass low-temperature impact tests unless specified.
Temperature Range and Service Conditions
- A234 WPB: Best suited for high-temperature and moderate-pressure systems, such as steam pipelines, boilers, and refinery plants.
- A420 WPL6: Designed for low-temperature or cryogenic applications, like LNG processing, cold storage systems, and offshore oil rigs.
If the service temperature drops below freezing, A420 WPL6 is the better choice due to its enhanced toughness. Conversely, for standard ambient or elevated temperature environments, A234 WPB remains more economical and widely available.
Manufacturing and Heat Treatment
Both materials undergo forging, bending, and welding processes. However, the heat treatment stages differ slightly:
- A234 WPB fittings: Typically normalized, annealed, or stress-relieved to achieve desired mechanical strength.
- A420 WPL6 fittings: Generally normalized or quenched and tempered to refine grain structure and improve low-temperature impact strength.
The added heat treatment in A420 WPL6 ensures consistent performance under sub-zero temperatures.
Applications of A234 WPB
- Power generation plants
- Petrochemical refineries
- Oil and gas pipelines
- Steam transport systems
- High-pressure industrial piping
Applications of A420 WPL6
- LNG terminals and plants
- Cryogenic storage facilities
- Low-temperature refinery units
- Offshore drilling rigs
- Refrigeration and cold weather process piping
Cost and Availability
A234 WPB is generally more cost-effective due to its simple production process and wide availability in the market. A420 WPL6, on the other hand, tends to be slightly more expensive because of its specialized heat treatment and impact testing requirements.
For standard temperature conditions, A234 WPB fittings provide an economical solution. However, for low-temperature environments where safety and performance are critical, A420 WPL6 is worth the higher investment.
A420 WPL6 vs A234 WPB: Quick Summary
| Parameter | A234 WPB | A420 WPL6 |
| Standard | ASTM A234 / ASME SA234 | ASTM A420 / ASME SA420 |
| Temperature Range | High/Moderate | Low (Cryogenic) |
| Impact Test | Optional | Mandatory |
| Nickel Content | — | Up to 0.40% |
| Service Type | General & High Temp | Low Temp |
| Typical Use | Power, Oil & Gas | LNG, Cryogenic Piping |
| Cost | More economical | Slightly higher |
Conclusion
Choosing between A420 WPL6 vs A234 WPB depends on the operating environment and temperature range of your system. Both materials deliver reliable strength and durability, but A420 WPL6 excels in low-temperature applications, while A234 WPB remains the go-to choice for high-temperature and standard pressure systems.
For industries seeking reliable and high-performance pipe fittings, understanding these material differences ensures not only safety and efficiency but also long-term cost-effectiveness.
