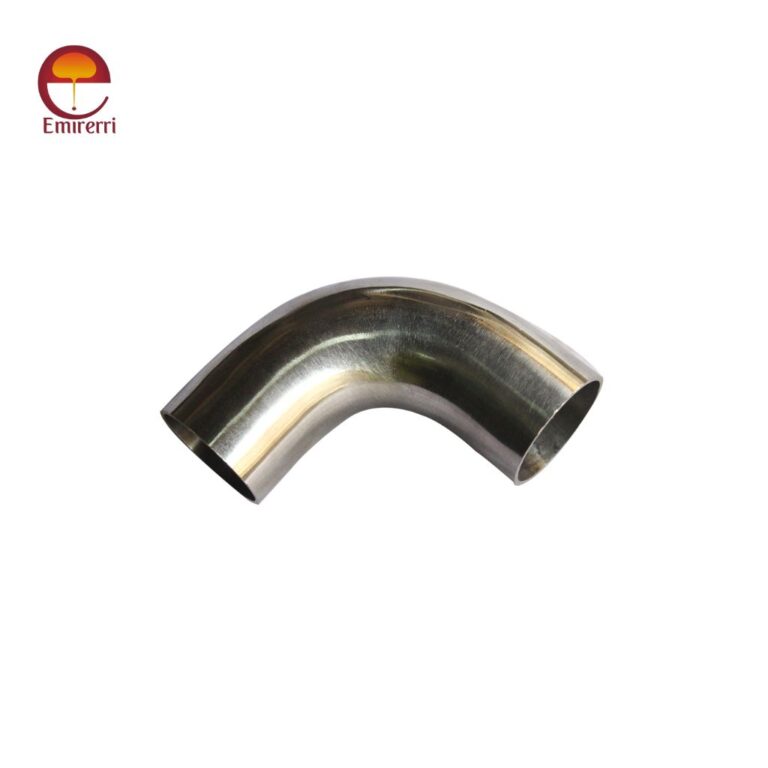

Stainless Steel Dairy Bend
Emirerri Steel is a reputed manufacturer and exporter of Dairy Bend, designed for use in hygienic and sanitary process piping systems. A Dairy Bend provides a smooth directional change in the pipeline while maintaining uniform flow, minimizing turbulence, and ensuring easy cleaning.
Manufactured from premium-grade stainless steel 304 and 316L, these bends are known for their corrosion resistance, durability, and mirror-polished finish, making them ideal for use in dairy, food, beverage, pharmaceutical, and cosmetic industries where hygiene is critical.
Emirerri Steel’s Dairy Bends are precisely engineered to meet international standards, offering both seamless and welded options with excellent dimensional accuracy.
Types of Dairy Bend
45° Dairy Bend – Used for moderate directional changes with minimal flow resistance.
90° Dairy Bend – Enables right-angle directional flow in compact piping systems.
180° Dairy Bend (U Bend) – Ideal for return flow or compact loop configurations.
Equal & Reducing Dairy Bend – Available for same or different pipe diameters.
TC End Dairy Bend – Designed with tri-clamp ends for quick assembly and disassembly.
SMS / IDF / DIN End Dairy Bend – Compatible with various international hygienic piping standards.
Specification Table
| Product Name | Dairy Bend |
|---|---|
| Brand | Emirerri Steel |
| Connection Type | Welded / TC Clamp / SMS / IDF / DIN |
| Size Range | ½” to 6” (DN10 to DN150) |
| Bend Angle | 45° / 90° / 180° |
| Surface Finish | Mirror / Electro-Polished |
| Working Pressure | Up to 10 Bar |
| Temperature Range | -20°C to +200°C |
| Testing | 100% Leak & Pressure Tested |
Standard & Grade
| Standard | Specification |
|---|---|
| ASTM | A403 / A270 |
| ASME | BPE / SA403 |
| DIN | DIN 11850 / DIN 11851 |
| SMS | SMS 3008 |
| ISO | ISO 2037 |
Material Grades:
Stainless Steel 304 / 304L
Stainless Steel 316 / 316L
Dimensions
| Size (Inch) | OD (mm) | Radius (mm) | Bend Angle |
|---|---|---|---|
| 1″ | 25.4 | 38 / 50 | 45° / 90° / 180° |
| 1.5″ | 38.1 | 57 / 76 | 45° / 90° / 180° |
| 2″ | 50.8 | 76 / 100 | 45° / 90° / 180° |
| 2.5″ | 63.5 | 95 / 120 | 45° / 90° / 180° |
| 3″ | 76.2 | 114 / 150 | 45° / 90° / 180° |
| 4″ | 101.6 | 152 / 200 | 45° / 90° / 180° |
Applications
Dairy Processing Units
Food & Beverage Production Lines
Pharmaceutical & Biotech Industries
Breweries & Distilleries
Cosmetic & Chemical Manufacturing
Water Filtration & CIP (Clean-In-Place) Systems
