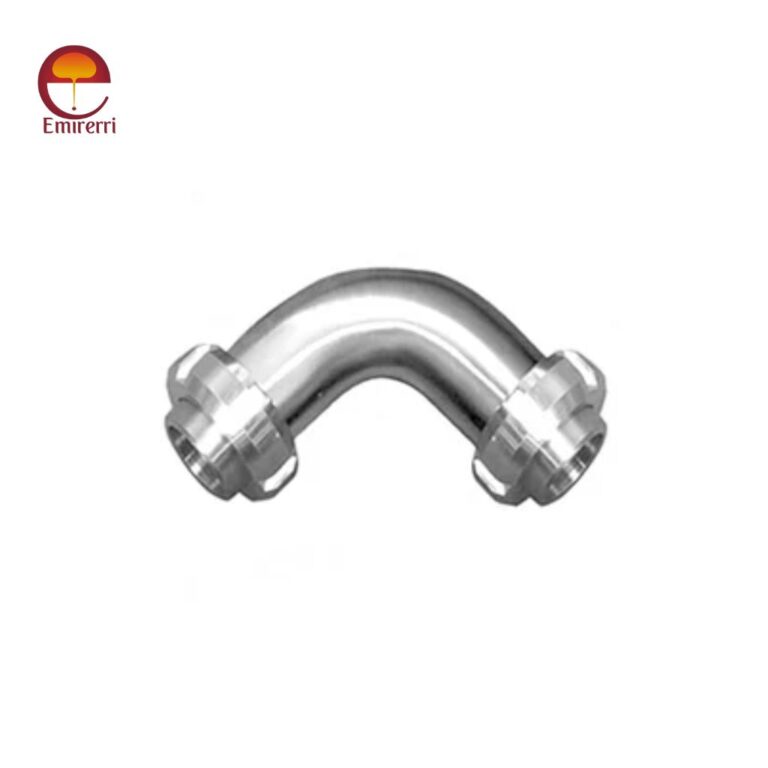

Stainless Steel Dairy Bend with SMS Union
Emirerri Steel is a trusted manufacturer and supplier of Dairy Bend with SMS Union, designed for use in sanitary and hygienic pipeline systems. The Dairy Bend with SMS Union provides a smooth directional flow in process lines while ensuring a secure, leak-proof, and detachable connection using SMS (Swedish Manufacturing Standard) unions.
Engineered with precision, these bends are made from stainless steel 304 and 316L, offering superior corrosion resistance, durability, and hygienic performance. They are widely used in dairy, food, beverage, pharmaceutical, and cosmetic industries where cleanliness and easy maintenance are essential.
Emirerri Steel’s Dairy Bends with SMS Unions are available in both 45° and 90° configurations, ensuring flexibility for various piping layouts.
Types of Dairy Bend with SMS Union
45° Dairy Bend with SMS Union – For gentle directional flow with reduced turbulence.
90° Dairy Bend with SMS Union – For right-angle directional changes in compact piping systems.
180° Dairy Bend with SMS Union – For return flow and loop designs.
Equal & Reducing SMS Union Bends – Available for same or varying pipe diameters.
Polished SMS Union Bends – With mirror or electro-polished finish for maximum hygiene.
Specification Table
| Product Name | Dairy Bend with SMS Union |
|---|---|
| Brand | Emirerri Steel |
| Connection Type | SMS Union (Male, Liner, Nut) |
| Size Range | ½” to 6” (DN10 to DN150) |
| Bend Angle | 45° / 90° / 180° |
| Surface Finish | Mirror / Electro-Polished |
| Material Grade | SS 304 / SS 316 / SS 316L |
| Working Pressure | Up to 10 Bar |
| Temperature Range | -20°C to +200°C |
| End Type | SMS Male / Female / Liner / Nut |
Standard & Grade
| Standard | Specification |
|---|---|
| SMS | SMS 3008 / SMS 1145 |
| DIN | DIN 11851 |
| ISO | ISO 2037 |
| ASTM | A270 / A403 |
| ASME | BPE Standard |
Material Grades:
Stainless Steel 304 / 304L
Stainless Steel 316 / 316L
Dimensions
| Size (Inch) | OD (mm) | Bend Radius (mm) | Union Type |
|---|---|---|---|
| 1″ | 25.4 | 38 / 50 | SMS Male & Liner |
| 1.5″ | 38.1 | 57 / 76 | SMS Male & Liner |
| 2″ | 50.8 | 76 / 100 | SMS Male & Liner |
| 2.5″ | 63.5 | 95 / 120 | SMS Male & Liner |
| 3″ | 76.2 | 114 / 150 | SMS Male & Liner |
| 4″ | 101.6 | 152 / 200 | SMS Male & Liner |
Applications
Emirerri Steel’s Dairy Bend with SMS Union is used across a wide range of industries where clean, hygienic flow paths are essential:
Dairy & Food Processing Plants
Beverage & Brewery Systems
Pharmaceutical & Biotech Facilities
Cosmetic & Personal Care Manufacturing
Water Filtration & RO Plants
CIP (Clean-In-Place) Systems
