Dairy Tee

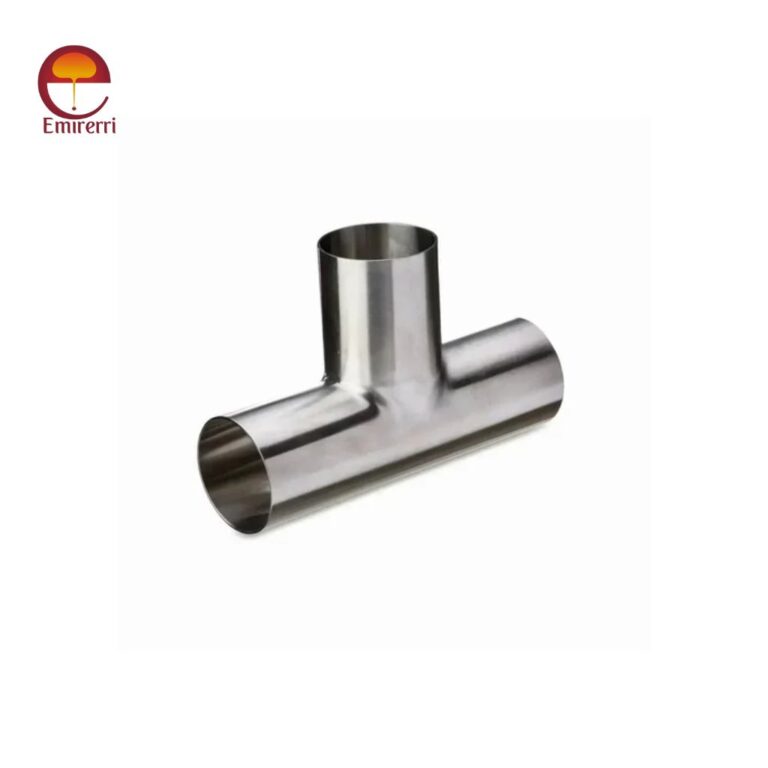

Stainless Steel Dairy Tee
Emirerri Steel is a trusted manufacturer and supplier of Dairy Tees, designed to ensure hygienic, smooth, and leak-proof connections in sanitary piping systems. A Dairy Tee is a T-shaped fitting that allows the distribution or merging of process lines at a 90° angle, maintaining consistent flow and cleanliness throughout the system.
These fittings are manufactured using high-quality stainless steel and are widely used in the dairy, food, beverage, pharmaceutical, and cosmetic industries. Each product is precision-engineered, mirror-polished, and tested to meet international sanitary standards, ensuring durability, corrosion resistance, and ease of cleaning.
Types of Dairy Tee
Emirerri Steel offers a variety of Dairy Tees to suit different process requirements:
Equal Dairy Tee – All three ends have the same diameter; ideal for uniform flow distribution.
Unequal (Reducing) Dairy Tee – Connects pipelines of different diameters for controlled flow changes.
TC End Dairy Tee – Designed with tri-clamp ends for quick assembly and easy disconnection.
Butt Weld Dairy Tee – Provides a permanent welded connection for strength and leak resistance.
SMS / DIN / IDF Dairy Tee – Available in multiple international standards for compatibility across systems.
Specification
| Product Name | Dairy Tee |
|---|---|
| Brand | Emirerri Steel |
| Connection Type | Welded / TC Clamp / SMS / IDF / DIN |
| Size Range | ½” to 6” (DN10 to DN150) |
| Surface Finish | Mirror / Electro-Polished |
| Working Pressure | Up to 10 Bar |
| Temperature Range | -20°C to 200°C |
| Testing | 100% Leak & Pressure Tested |
| End Connection | Plain End / Bevel End / TC End |
Standard & Grade
| Standard | Specification |
|---|---|
| ASTM | A403 / A270 |
| ASME | BPE / SA403 |
| DIN | DIN 11850 / DIN 11851 |
| SMS | SMS 3008 |
| ISO | ISO 2037 |
Material Grades:
Stainless Steel 304 / 304L
Stainless Steel 316 / 316L
Dimensions
| Size (Inch) | OD (mm) | Wall Thickness (mm) | Type |
|---|---|---|---|
| 1″ | 25.4 | 1.5 | Equal / Reducing |
| 1.5″ | 38.1 | 1.5 | Equal / Reducing |
| 2″ | 50.8 | 2.0 | Equal / Reducing |
| 2.5″ | 63.5 | 2.0 | Equal / Reducing |
| 3″ | 76.2 | 2.5 | Equal / Reducing |
| 4″ | 101.6 | 3.0 | Equal / Reducing |
Applications
Dairy Processing & Milk Plants
Food & Beverage Production Lines
Pharmaceutical & Biotech Manufacturing
Breweries and Distilleries
Water Treatment & Filtration Systems
Cosmetics and Chemical Industries
