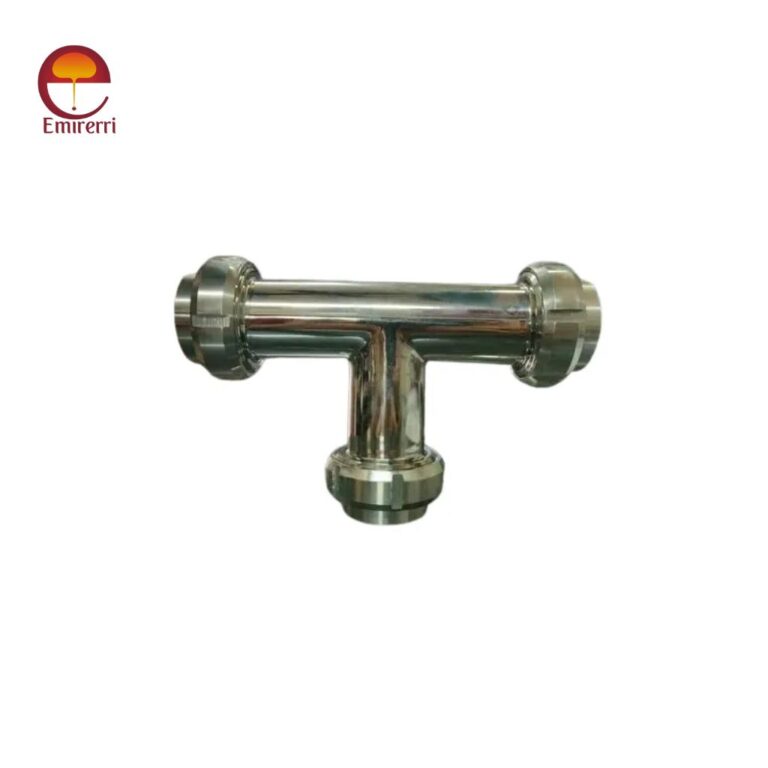

Dairy Tee with SMS Union
Stainless Steel Dairy Tee with SMS Union
Emirerri Steel is a leading manufacturer and exporter of Dairy Tee with SMS Union, designed for hygienic and sanitary piping systems used in the dairy, food, beverage, pharmaceutical, and cosmetic industries.
A Dairy Tee with SMS Union allows three-way connections in process lines while maintaining a secure, leak-proof, and easy-to-clean joint. These fittings are manufactured from high-quality stainless steel 304 and 316L, ensuring excellent resistance to corrosion, smooth flow of media, and compliance with international sanitary standards such as SMS 1145.
Each fitting is mirror-polished internally and externally for enhanced hygiene and durability, making it ideal for systems that require frequent cleaning and sterilization.
Types of Dairy Tee with SMS Union
Equal Dairy Tee with SMS Union – All three outlets have the same diameter, ensuring balanced flow distribution.
Reducing Dairy Tee with SMS Union – Connects pipelines of different diameters to regulate flow between lines.
Straight SMS Union Tee – Designed for direct inline branch connections.
Elbow (90°) SMS Union Tee – Provides a smooth directional change with SMS union ends.
Specification Table
| Product Name | Dairy Tee with SMS Union |
|---|---|
| Brand | Emirerri Steel |
| Connection Type | SMS Union (Male + Liner + Nut) |
| Size Range | ½” to 6” (DN10 to DN150) |
| Surface Finish | Mirror / Electro-Polished |
| Working Pressure | Up to 10 Bar |
| Temperature Range | -20°C to +200°C |
| End Connection | SMS Union / Welded |
| Testing | 100% Leak & Pressure Tested |
Standard & Grade
| Standard | Specification |
|---|---|
| ASTM | A403 / A270 |
| SMS | SMS 1145 / SMS 3008 |
| DIN | DIN 11851 / DIN 11850 |
| ISO | ISO 2037 |
| ASME | BPE / SA403 |
Material Grades:
Stainless Steel 304 / 304L
Stainless Steel 316 / 316L
Dimensions
| Size (Inch) | OD (mm) | Wall Thickness (mm) | Type |
|---|---|---|---|
| 1″ | 25.4 | 1.5 | Equal / Reducing |
| 1.5″ | 38.1 | 1.5 | Equal / Reducing |
| 2″ | 50.8 | 2.0 | Equal / Reducing |
| 2.5″ | 63.5 | 2.0 | Equal / Reducing |
| 3″ | 76.2 | 2.5 | Equal / Reducing |
| 4″ | 101.6 | 3.0 | Equal / Reducing |
Applications
Dairy and Food Processing Plants
Beverage and Brewery Lines
Pharmaceutical and Biotechnology Industries
Cosmetic and Personal Care Manufacturing
Chemical and Water Filtration Units
