Socket Weld Tee
Socket Weld Tee Manufacturer & Supplier

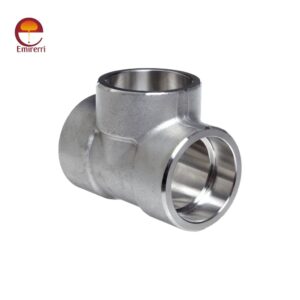

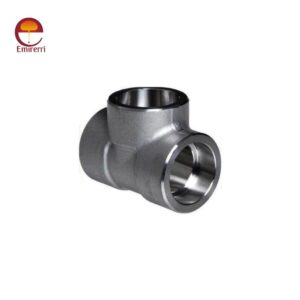

A Socket Weld Tee is a pipe fitting that can combine or split fluid flow. It has a T-shaped form, with one inlet and two exits at 90-degree angles. These fittings are designed for small bore piping systems and are typically used in high-pressure applications.
| Attribute | Description |
|---|---|
| Product Name | Socket Weld Tee (Equal or Reducing) |
| Shape | T-shaped, available as Equal Tee (same diameter) or Reducing Tee (different diameters) |
| Size Range | 1/8″ to 4″ (DN6 to DN100) |
| Pressure Classes | Class 2000, 3000, 6000, 9000 (depending on application) |
| Standards | ASME B16.11, BS3799, MSS SP-79, MSS SP-95 |
| Materials | – Stainless Steel: ASTM A182 F304, F304L, F316, F316L, F321, F347, F904L – Carbon Steel: ASTM A105, A350 LF2, A106 Gr.B – Alloy Steel: ASTM A182, A335, A234 (P1, P5, P9, P11, P22, P91) – Nickel Alloys: UNS 2200 (Nickel 200), UNS 4400 (Monel 400), Inconel 600/625, Hastelloy C276 – Duplex/Super Duplex: ASTM A182 F51, F53, F55 – Copper Alloys: ASTM SB 111, SB 466 (C70600, C71500) |
| Connection Type | Socket Weld (pipe inserted into recessed area and welded) |
| Max Pressure | Up to 2000 psi @ 150°F (Class 3000), 300 psi @ 550°F (saturated steam) |
| Temperature Range | -20°F to 550°F (material dependent) |
| Applications | Chemical processing, oil refineries, petrochemical, power generation, water/gas lines |
| Key Features | – Leakage-proof and corrosion-resistant – Suitable for high-pressure systems – Used for toxic/flammable fluids where no leakage is permitted – Simplifies pipeline branching |
| Dimensional Tolerances | – Socket Bore (B): Max/min per ASME B16.11 – Bore Diameter (D): Max/min – Socket Wall Thickness (C): Average thickness – Center to bottom of socket (A): ±1.5 mm (NPS 1/2 to 3/4), ±2 mm (NPS 1 to 2), ±2.5 mm (NPS 2.5 to 4) |
| Typical Example | 1″ Socket Weld Forged Steel Tee: – Outside Dia.: 1-49/64″ – Max Pressure: 2000 psi @ 150°F – Material: Black Forged Steel (ASTM A106) – Number of Holes: 3 |
Socket Weld Tee Dimensions
Class 3000 (Suitable for Schedule 80 Pipe)
| NPS | DN | A (Center to End) | B (Socket Depth) | C (Socket Diameter) | D (Bore Diameter) | J (Min. Socket Wall Thickness) |
|---|---|---|---|---|---|---|
| 1/8″ | 6 | 21.0 | 10.0 | 11.0–11.5 | 6.8–7.5 | 3.2 |
| 1/4″ | 8 | 21.0 | 10.0 | 14.0–14.5 | 9.0–10.0 | 3.3 |
| 3/8″ | 10 | 25.5 | 10.0 | 17.5–18.0 | 12.5–13.5 | 3.5 |
| 1/2″ | 15 | 31.5 | 10.0 | 21.8–22.2 | 15.5–16.5 | 4.1 |
| 3/4″ | 20 | 37.0 | 13.0 | 27.2–27.7 | 21.0–22.0 | 4.3 |
| 1″ | 25 | 43.0 | 13.0 | 34.0–34.5 | 27.0–28.0 | 4.8 |
| 1-1/4″ | 32 | 47.5 | 13.0 | 42.7–43.2 | 35.5–36.5 | 5.0 |
| 1-1/2″ | 40 | 53.5 | 13.0 | 48.8–49.3 | 41.5–42.5 | 5.3 |
| 2″ | 50 | 64.0 | 16.0 | 61.2–61.7 | 52.5–53.5 | 6.1 |
| 2-1/2″ | 65 | 76.5 | 16.0 | 73.8–74.4 | 62.5–63.5 | 7.0 |
| 3″ | 80 | 89.0 | 19.0 | 89.8–90.4 | 78.0–79.0 | 7.6 |
| 4″ | 100 | 104.0 | 19.0 | 114.8–115.4 | 102.0–103.0 | 8.6 |
Class 6000 (Suitable for Schedule 160 Pipe)
| NPS | DN | A (Center to End) | B (Socket Depth) | C (Socket Diameter) | D (Bore Diameter) | J (Min. Socket Wall Thickness) |
|---|---|---|---|---|---|---|
| 1/8″ | 6 | 25.5 | 10.0 | 11.0–11.5 | 5.0–6.0 | 4.8 |
| 1/4″ | 8 | 25.5 | 10.0 | 14.0–14.5 | 7.0–8.0 | 4.8 |
| 3/8″ | 10 | 31.5 | 10.0 | 17.5–18.0 | 10.0–11.0 | 5.0 |
| 1/2″ | 15 | 37.0 | 10.0 | 21.8–22.2 | 12.5–13.5 | 5.6 |
| 3/4″ | 20 | 43.0 | 13.0 | 27.2–27.7 | 16.0–17.0 | 6.1 |
| 1″ | 25 | 50.0 | 13.0 | 34.0–34.5 | 21.5–22.5 | 6.6 |
| 1-1/4″ | 32 | 56.5 | 13.0 | 42.7–43.2 | 30.0–31.0 | 6.8 |
| 1-1/2″ | 40 | 62.0 | 13.0 | 48.8–49.3 | 36.0–37.0 | 7.1 |
| 2″ | 50 | 74.0 | 16.0 | 61.2–61.7 | 47.0–48.0 | 8.0 |
| 2-1/2″ | 65 | 84.0 | 16.0 | 73.8–74.4 | 56.0–57.0 | 8.9 |
| 3″ | 80 | 98.5 | 19.0 | 89.8–90.4 | 68.0–69.0 | 10.4 |
| 4″ | 100 | 118.0 | 19.0 | 114.8–115.4 | 90.0–91.0 | 11.8 |
Class 9000 (Suitable for XXS Pipe)
| NPS | DN | A (Center to End) | B (Socket Depth) | C (Socket Diameter) | D (Bore Diameter) | J (Min. Socket Wall Thickness) |
|---|---|---|---|---|---|---|
| 1/8″ | 6 | 25.5 | 10.0 | 11.0–11.5 | 3.0–4.0 | 6.4 |
| 1/4″ | 8 | 31.5 | 10.0 | 14.0–14.5 | 4.5–5.5 | 6.4 |
| 3/8″ | 10 | 37.0 | 10.0 | 17.5–18.0 | 7.0–8.0 | 6.6 |
| 1/2″ | 15 | 43.0 | 10.0 | 21.8–22.2 | 9.0–10.0 | 7.5 |
| 3/4″ | 20 | 50.0 | 13.0 | 27.2–27.7 | 12.5–13.5 | 8.2 |
| 1″ | 25 | 56.5 | 13.0 | 34.0–34.5 | 16.0–17.0 | 9.1 |
| 1-1/4″ | 32 | 62.0 | 13.0 | 42.7–43.2 | 24.0–25.0 | 9.7 |
| 1-1/2″ | 40 | 74.0 | 13.0 | 48.8–49.3 | 29.0–30.0 | 10.2 |
| 2″ | 50 | 84.0 | 16.0 | 61.2–61.7 | 38.0–39.0 | 11.6 |
| 2-1/2″ | 65 | 98.5 | 16.0 | 73.8–74.4 | 46.0–47.0 | 13.7 |
| 3″ | 80 | 113.5 | 19.0 | 89.8–90.4 | 57.0–58.0 | 15.2 |
| 4″ | 100 | 132.0 | 19.0 | 114.8–115.4 | 78.0–79.0 | 17.0 |
Features:
Ensures leak-proof connection due to strong weld.
Used in applications requiring robust, permanent joints.
Suitable for pipelines carrying flammable, toxic, or expensive materials.
Types:
- Equal Tee – All three ends are the same diameter.
- Reducing Tee – One or two branch outlets have a smaller diameter.
Standards:
ASME B16.11
MSS SP-83
Applications:
Chemical & Petrochemical Plants
Power Generation
Oil & Gas Industry
High-pressure steam systems
