Threaded Cross
Threaded Cross Manufacturer & Supplier

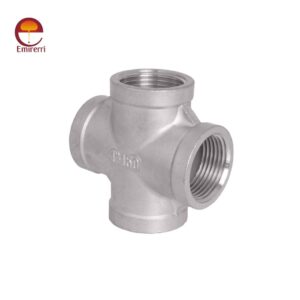

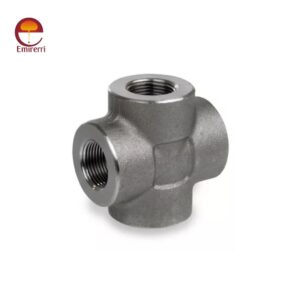

A Threaded Cross is a four-way pipe fitting with one inlet and three outlets arranged at 90-degree angles. It features internal threads (female) on all four ends, allowing for easy and leak-proof connection of threaded pipes without welding. Threaded Cross fittings are typically used in high-pressure, small-bore piping systems.
| Feature | Description |
|---|---|
| Product Name | ASME B16.11 Threaded Cap |
| Standards | ASME B16.11, BS3799, ASTM A182, MSS SP-83, ANSI B1.20.1 (for threads) |
| Materials |
|
| Pressure Classes | Class 2000, 3000, 6000 (Threaded) |
| Sizes | 1/8″ NB to 4″ NB (Nominal Bore) |
| Components | Single piece: Threaded Cap (Female Threaded) |
| Connection Type | Female Threaded (screws onto male-threaded pipe or fitting) |
| Pressure Ratings | Up to 3000 psi (Class 3000), 2000 psi saturated steam (varies by material and size) |
Threaded Cross Dimensions
Class 2000
| NPS | Min Length of Thread | Outside Dia of Band D | Center to End A | Min WT | |
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
| 1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Class 3000
| NPS | Min Length of Thread | Outside Dia of Band D | Center to End A | Min WT | |
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 38 | 33 | 4.09 |
| 3/4 | 12.7 | 13.9 | 46 | 38 | 4.32 |
| 1 | 14.7 | 17.3 | 56 | 44 | 4.98 |
| 1.1/4 | 17 | 18 | 62 | 51 | 5.28 |
| 1.1/2 | 17.8 | 18.4 | 75 | 60 | 5.56 |
| 2 | 19 | 19.2 | 84 | 64 | 7.14 |
| 2.1/2 | 23.6 | 28.9 | 102 | 83 | 7.65 |
| 3 | 25.9 | 30.5 | 121 | 95 | 8.84 |
| 4 | 27.7 | 33 | 152 | 114 | 11.18 |
Class 6000
| NPS | Min Length of Thread | Outside Dia of Band D | Center to End A | Min WT | |
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
| 1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
Types of Threaded Cross
Equal Cross
All four outlets are of the same diameter.
Reducing Cross
One or more outlets are of different diameters to accommodate pipes of varying sizes.
Advantages
Provides multiple connections in tight spaces
Easy assembly/disassembly
Suitable for high-pressure threaded systems
Eliminates need for welding
Applications
Oil & gas industries
Petrochemical and chemical plants
Fire sprinkler systems
Water and air distribution lines
Instrumentation piping systems
