Copper Elbow Manufacturer, Supplier & Exporter
Copper Elbows
Copper elbows are essential pipe fittings used to change the direction of flow in copper piping systems. Because of their superior corrosion resistance, longevity, and leak-proof performance, they are widely utilized in plumbing, HVAC, refrigeration, fire protection, medical gas, maritime, and industrial applications. Copper elbows are available in different angles, connection types, and sizes to suit various piping layouts.
At Emirerri Steel, we manufacture and supply premium-quality copper elbows that comply with international standards such as ASME, ASTM, EN, and ISO. Our copper elbows are designed for long service life, easy installation, and reliable performance under high-pressure and high-temperature conditions.
Types of Copper Elbows

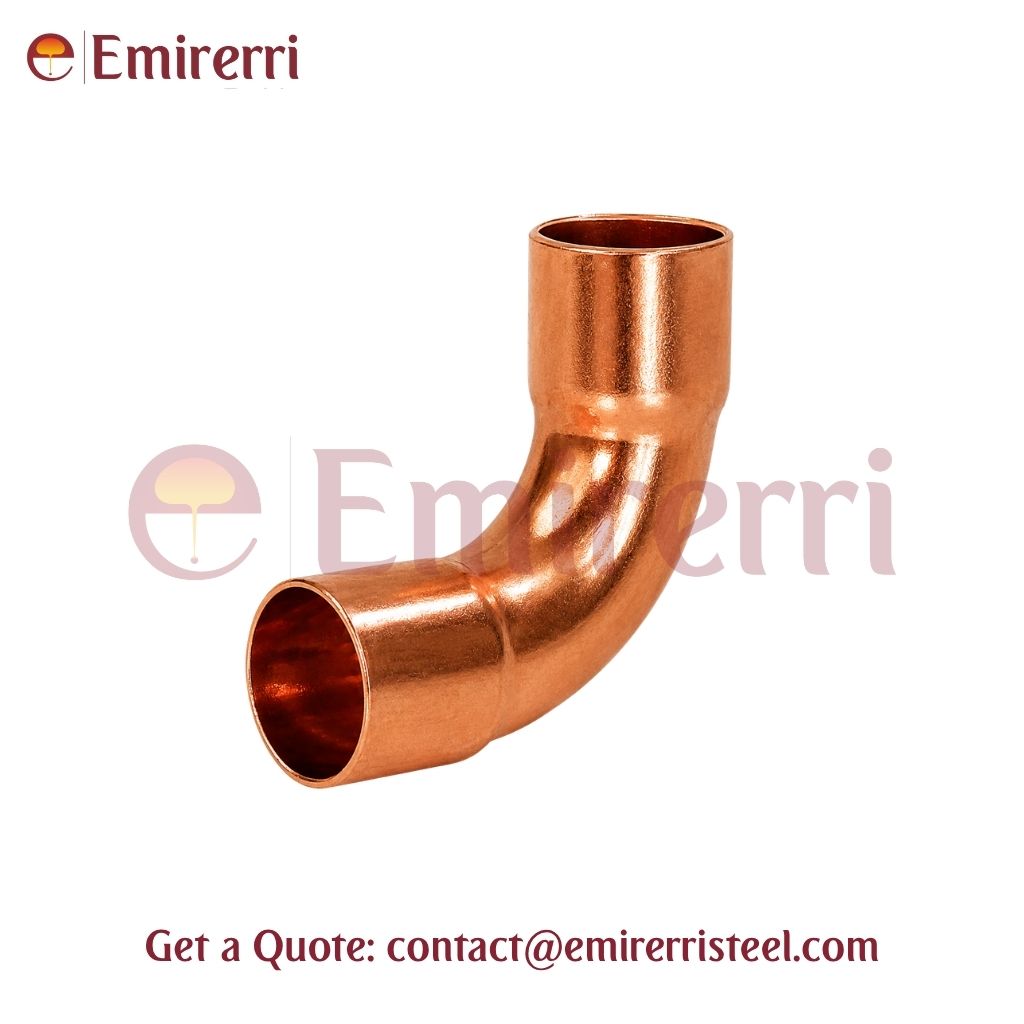

90 Degree Copper Elbow
A 90-degree copper elbow changes the direction of flow by 90 degrees and is the most commonly used elbow in plumbing and industrial piping systems.
Applications
- Water supply systems
- HVAC piping
- Refrigeration systems
- Fire sprinkler systems
- Industrial pipelines
Features
- Smooth flow transition
- Leak-proof connection
- High corrosion resistance
- Easy installation

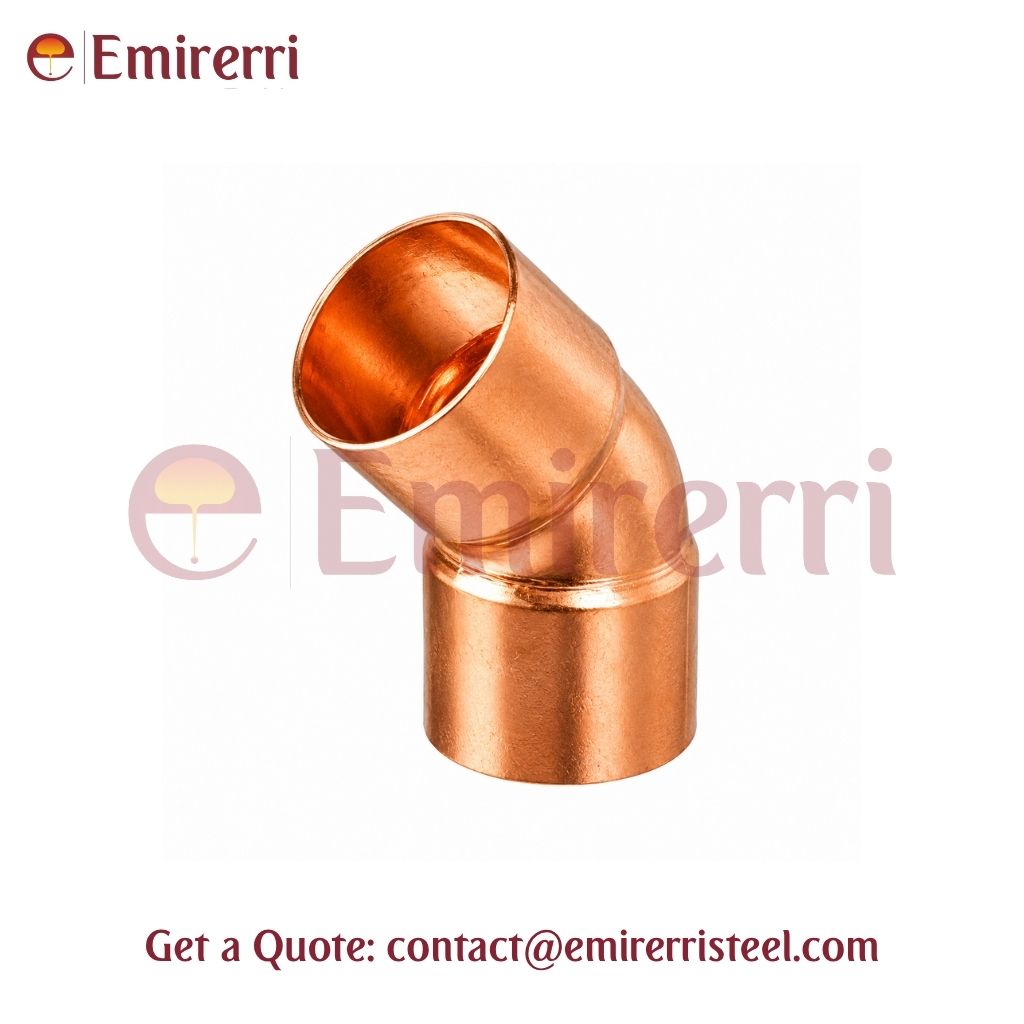

45 Degree Copper Elbow
A 45-degree copper elbow provides a gradual change in flow direction, minimizing pressure loss and turbulence.
Benefits
- Improved flow efficiency
- Reduced pressure drop
- Lower fluid turbulence
- Longer system life
Applications
- Chilled water systems
- Air conditioning
- Chemical process piping
- Water treatment plants

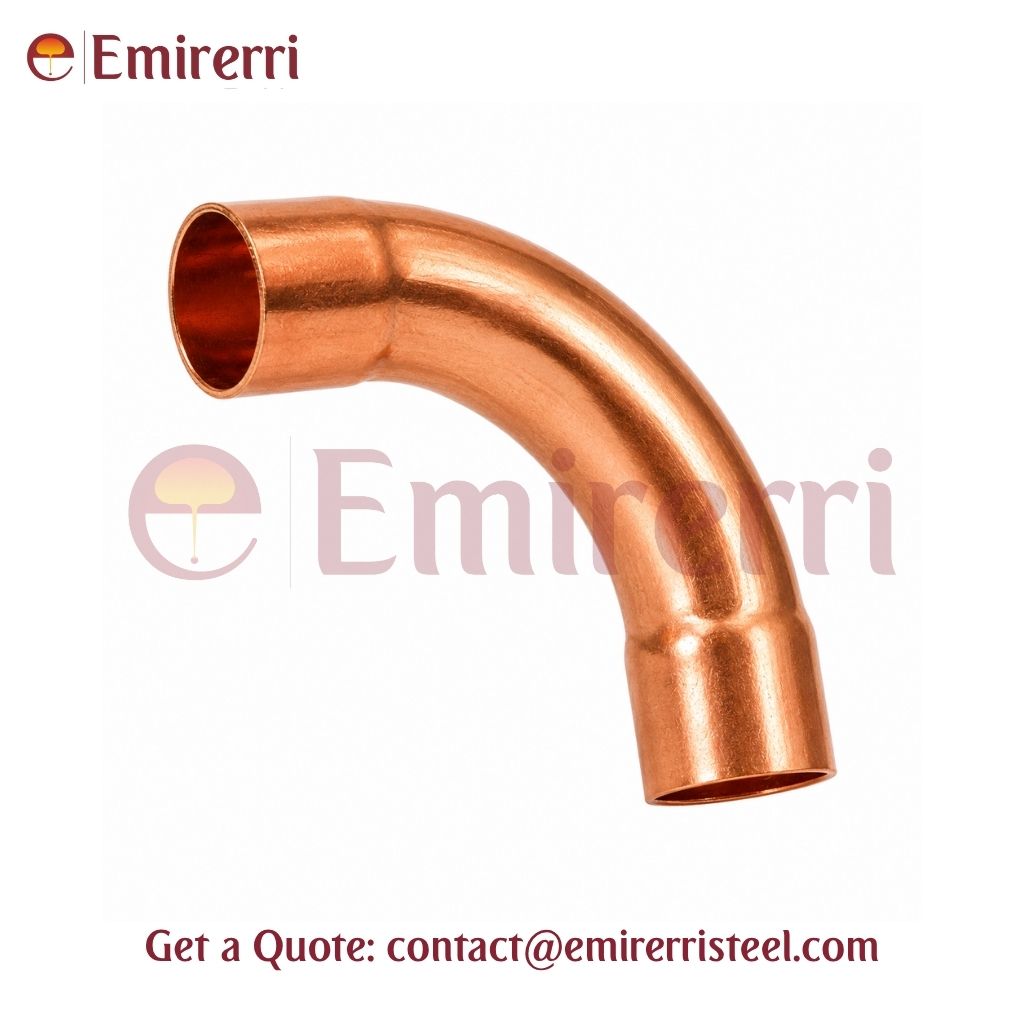

Long Radius Copper Elbow
Long radius elbows have a larger centerline radius, reducing flow resistance and pressure loss.
Advantages
- Better flow characteristics
- Lower erosion
- Reduced pumping costs
- Suitable for high-flow systems
Industries
- Oil & Gas
- Petrochemical
- Power Plants
- Water Distribution

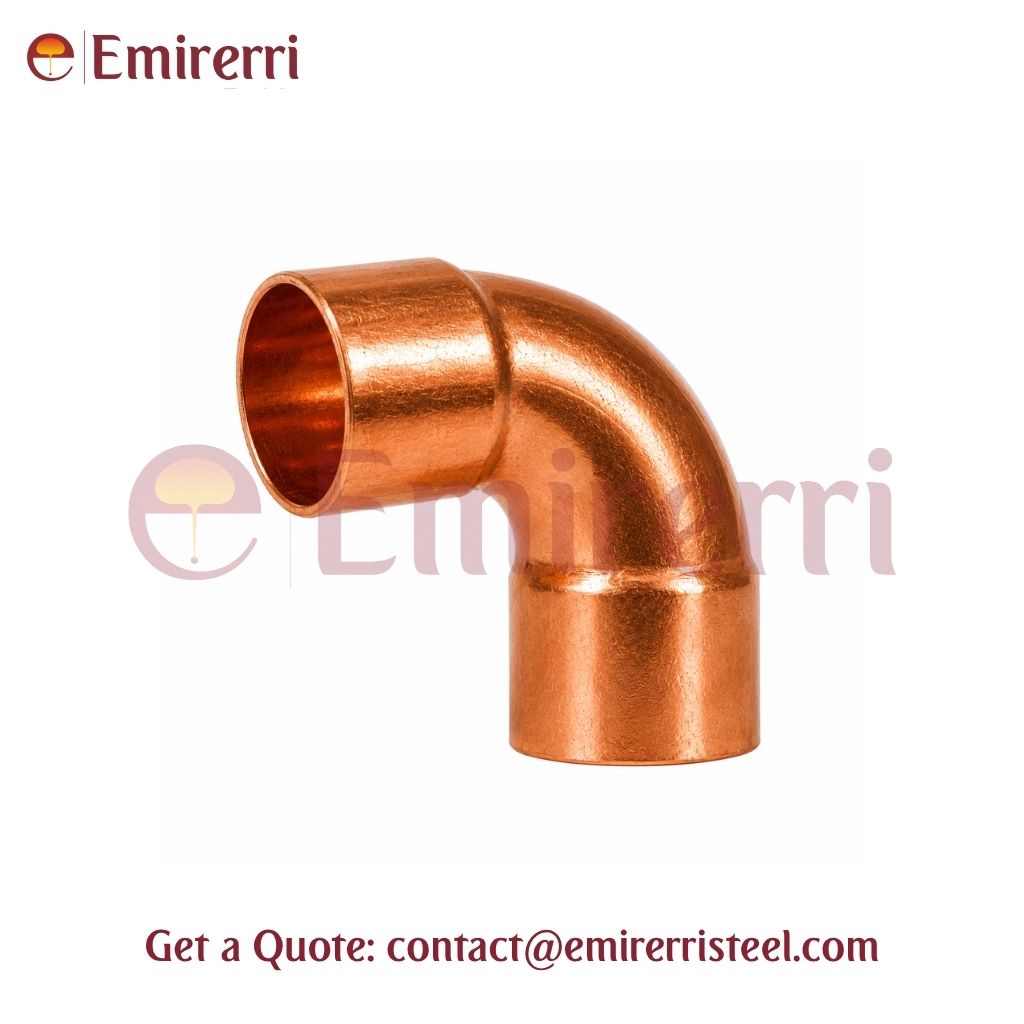

Short Radius Copper Elbow
Short radius elbows are used where installation space is limited.
Applications
- Compact piping systems
- Mechanical rooms
- Building services
- Equipment connections

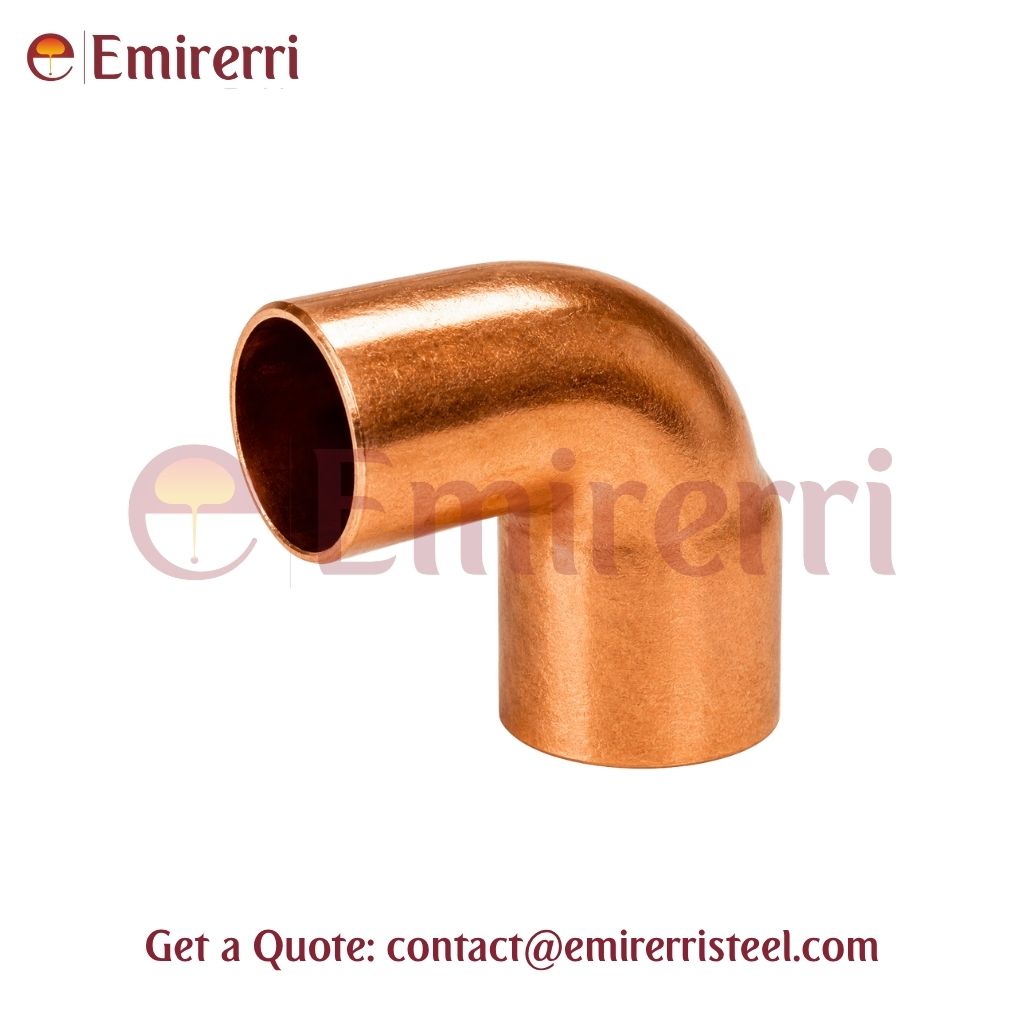

Street Copper Elbow
Street elbows have one male and one female end, allowing direct connection without additional fittings.
Benefits
- Space-saving design
- Fewer pipe connections
- Faster installation
- Lower installation cost
Connection Types
Copper elbows are available with different end connections depending on the installation method
Sweat (Solder) Copper Elbow
Sweat fittings are joined using solder and flux, making them ideal for potable water and plumbing applications.
Advantages
- Reliable seal
- Cost-effective
- Widely used
- Easy maintenance
Brazed Copper Elbow
Brazed copper elbows use high-temperature filler metal, producing stronger joints suitable for demanding applications.
Applications
- Refrigeration
- Medical gas systems
- Air conditioning
- High-pressure pipelines
Compression Copper Elbow
Compression elbows create leak-free connections without heating.
Features
- No flame required
- Quick installation
- Reusable
- Suitable for repairs
Press-Fit Copper Elbow
Press-fit elbows use specialized pressing tools to create secure, permanent joints quickly.
Benefits
- Fast installation
- No soldering
- No open flame
- Consistent joint quality
Threaded Copper Elbow
Threaded copper elbows are forged fittings designed for threaded piping systems where disassembly is required.
Common Uses
- Pumps
- Valves
- Instrumentation
- Industrial piping
Copper Elbow Materials & Grades
Emirerri Steel supplies copper elbows in a variety of copper and copper alloy grades to suit different service conditions.
Pure Copper Grades
- C12200 (DHP Copper)
- C12000 (DLP Copper)
- C11000 (ETP Copper)
- C10200 (Oxygen-Free Copper)
- C10100 (OFE Copper)
Brass Grades
- C26000
- C27000
- C27200
- C28000
- C36000
- C37700
Bronze Grades
- C51000
- C52100
- C90300
- C90500
- C93200
- C95400
- C95500
- C95800
Copper-Nickel Grades
- C70600 (90/10 Cu-Ni)
- C71500 (70/30 Cu-Ni)
- C71640
- C72200
Copper Elbow Specifications
| Specification | Details |
|---|---|
| Product | Copper Elbow |
| Elbow Angles | 45°, 90°, 180° |
| Radius | Long Radius, Short Radius |
| Connection Types | Sweat, Brazed, Compression, Press-Fit, Threaded |
| Size Range | 1/4″ NB to 12″ NB (Custom sizes available) |
| Pressure Rating | As per application requirements |
| Surface Finish | Polished, Bright, Pickled |
| Standards | ASME B16.22, ASME B16.18, EN 1254, ASTM B88, ASTM B280 |
| Testing | Visual Inspection, Dimensional Check, Pressure Testing, PMI (on request) |
Manufacturing Standards
Our copper elbows are manufactured according to international standards, including:
- ASME B16.22
- ASME B16.18
- ASTM B88
- ASTM B280
- ASTM B75
- EN 1254
- EN 1057
- ISO Standards
- BS Standards
Applications
Copper elbows are extensively used in:
- Plumbing Systems
- HVAC & Air Conditioning
- Refrigeration Systems
- Medical Gas Pipelines
- Fire Protection Systems
- Oil & Gas Industry
- Petrochemical Plants
- Chemical Processing
- Marine & Shipbuilding
- Desalination Plants
- Water Treatment Facilities
- Power Generation Plants
- Food & Beverage Industry
- Pharmaceutical Manufacturing
Frequently Asked Questions (FAQs)
A copper elbow is a pipe fitting used to change the direction of flow in a copper piping system, commonly available in 45°, 90°, and 180° configurations.
The most common types include 45° elbows, 90° elbows, long radius elbows, short radius elbows, and street elbows.
Copper elbows can be connected using soldering (sweat), brazing, compression fittings, press-fit systems, or threaded connections.
Popular grades include C12200, C11000, C70600 (90/10 Cu-Ni), C71500 (70/30 Cu-Ni), C37700 Brass, and C95400 Aluminum Bronze.
Copper elbows are widely used in plumbing, HVAC, refrigeration, fire protection, marine engineering, desalination plants, medical gas systems, power generation, and industrial process piping.
