Copper Pipe Fittings
Copper pipe fittings are essential components used to connect, redirect, branch, reduce, or terminate copper piping systems in residential, commercial, and industrial applications. Known for their exceptional corrosion resistance, thermal conductivity, and long service life, copper fittings are widely used in plumbing, HVAC, refrigeration, fire protection, medical gas systems, marine applications, and industrial process piping.
At Emirerri Steel, we supply a comprehensive range of high-quality copper pipe fittings manufactured to international standards. Our fittings are available in various sizes, pressure ratings, and alloy grades to meet the requirements of diverse industries across North Africa, the Middle East, Europe, and worldwide.
Types of Copper Pipe Fittings
Installation and Joining Methods
Different joining methods are selected based on operating pressure, temperature, application, and service requirements.

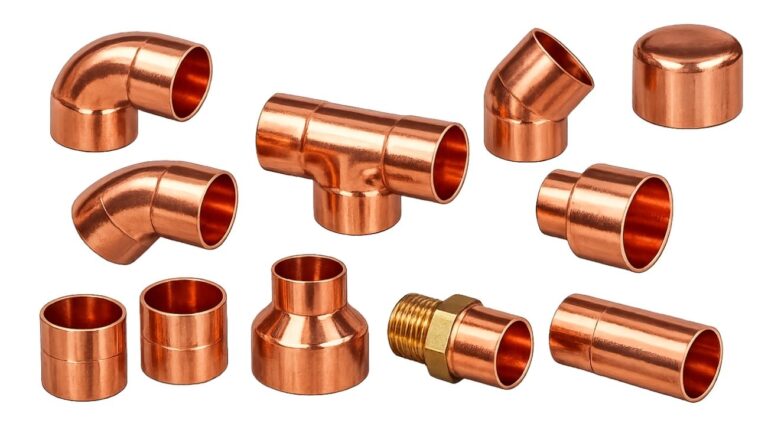

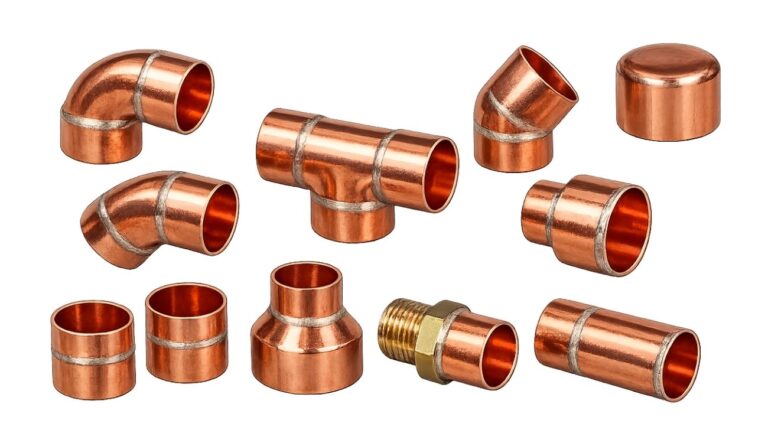

Soldered (Sweated) Joints
Soldering, also known as sweating, is the most common method for joining copper fittings in plumbing and HVAC systems. The pipe and fitting are cleaned, flux is applied, and a low-temperature solder is melted into the joint through capillary action.
Advantages
- Economical
- Easy installation
- Leak-free joints
- Suitable for potable water
Typical Applications
- Residential plumbing
- Domestic water systems
- Heating installations
Brazed Joints
Brazing uses a higher-temperature filler metal, producing stronger joints than soldering. It is ideal for high-pressure and high-temperature applications.
Advantages
- Superior mechanical strength
- High pressure resistance
- Better temperature performance
- Long-lasting durability
Applications
- Refrigeration
- Air conditioning
- Medical gas pipelines
- Industrial process systems
Copper Compression Fittings
Compression fittings use a compression nut and ferrule to create a secure seal without heat.
Benefits
- No flame required
- Easy installation
- Quick maintenance
- Reusable components
Suitable For
- Water supply
- Gas systems
- Instrumentation
- Retrofit projects

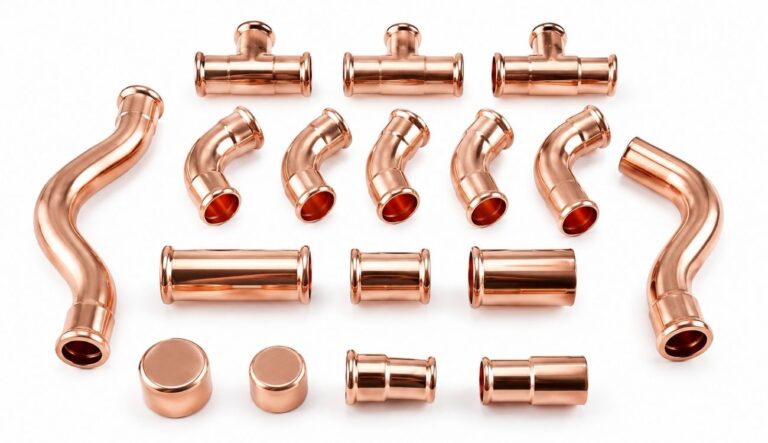

Press-Fit Copper Fittings
Press-fit technology creates secure joints using specialized pressing tools without soldering or brazing.
Advantages
- Fast installation
- No open flame
- Consistent joint quality
- Reduced labor costs
Applications
- Commercial buildings
- Hospitals
- Hotels
- Industrial plants
- Fire protection systems

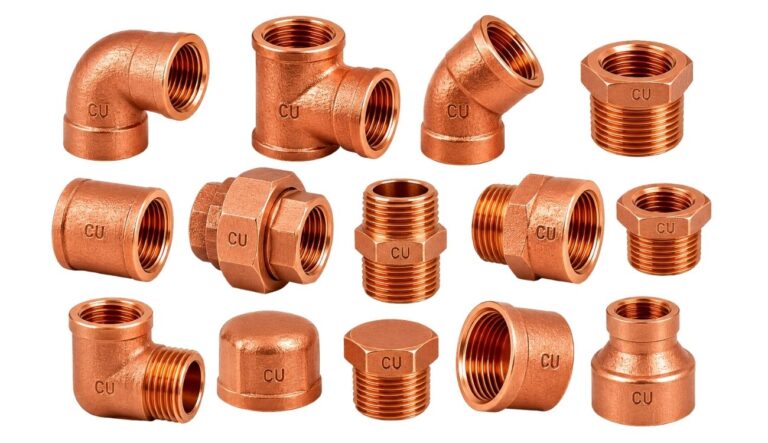

Threaded (Forged) Copper Fittings
Forged threaded copper fittings provide durable mechanical connections for systems requiring disassembly or integration with threaded equipment.
Features
- High mechanical strength
- Easy replacement
- Suitable for maintenance-intensive systems
- Excellent sealing performance
Common Applications
- Pumps
- Valves
- Instrumentation
- Process piping
Common Copper Alloy Materials
Brass Pipe Fittings
Brass is an alloy primarily composed of copper and zinc. It offers excellent machinability, corrosion resistance, and mechanical strength.
Key Properties
- High corrosion resistance
- Good strength
- Easy machining
- Attractive appearance
Applications
- Plumbing
- Water supply
- Gas distribution
- HVAC equipment
- Industrial valves
Bronze Pipe Fittings
Bronze is primarily composed of copper and tin, providing superior wear resistance and excellent resistance to seawater corrosion.
Features
- High strength
- Excellent wear resistance
- Marine corrosion resistance
- Long service life
Applications
- Marine piping
- Shipbuilding
- Offshore platforms
- Industrial pumps
- Water treatment plants
International Standards
Our copper pipe fittings are manufactured according to international standards, including:
- ASME B16.22
- ASME B16.18
- ASTM B75
- ASTM B88
- ASTM B280
- ASTM B306
- ASTM B111
- EN 1254
- EN 1057
- ISO Standards
- BS Standards
Copper Pipe Fittings Grades
Emirerri Steel supplies copper pipe fittings in a wide range of copper and copper alloy grades suitable for plumbing, HVAC, refrigeration, marine, power generation, desalination, oil & gas, and industrial process piping. These grades comply with international ASTM, ASME, EN, DIN, and ISO standards.
| Material | Grade / UNS Number | Standard | Common Applications |
|---|---|---|---|
| Pure Copper | C12200 (DHP Copper) | ASTM B88, ASTM B280, EN 1057 | Plumbing, HVAC, Refrigeration |
| C12000 (DLP Copper) | ASTM | Water Supply | |
| C11000 (ETP Copper) | ASTM B152 | Electrical & Industrial | |
| C10200 (OF Copper) | ASTM | High-Purity Applications | |
| C10100 (OFE Copper) | ASTM | Oxygen-Free Systems | |
| Brass | C26000 (Cartridge Brass) | ASTM B16 | Plumbing |
| C27000 (Yellow Brass) | ASTM | Water Systems | |
| C27200 | ASTM | General Engineering | |
| C27400 | ASTM | Industrial Applications | |
| C28000 (Muntz Metal) | ASTM | Marine & Industrial | |
| C36000 (Free-Cutting Brass) | ASTM B16 | Machined Components | |
| C37700 (Forging Brass) | ASTM | Forged Fittings | |
| C38500 | ASTM | Architectural | |
| Bronze | C51000 (Phosphor Bronze) | ASTM | Pumps & Valves |
| C52100 (Phosphor Bronze) | ASTM | Industrial Components | |
| C54400 | ASTM | Bearings | |
| C90300 | ASTM | Water Works | |
| C90500 (Tin Bronze) | ASTM | Industrial | |
| C90700 | ASTM | Heavy Engineering | |
| C93200 (Bearing Bronze) | ASTM | Bushings | |
| C95400 (Aluminum Bronze) | ASTM | Marine | |
| C95500 (Nickel Aluminum Bronze) | ASTM | Offshore | |
| C95800 (Nickel Aluminum Bronze) | ASTM | Seawater Systems | |
| Copper-Nickel (Cu-Ni) | C70600 (90/10 Cu-Ni) | ASTM B466, ASTM B111 | Marine & Desalination |
| C71500 (70/30 Cu-Ni) | ASTM B466 | Offshore & Condensers | |
| C71640 | ASTM | Heat Exchangers | |
| C72200 | ASTM | Industrial Cooling | |
| Silicon Bronze | C65100 | ASTM | Marine Hardware |
| C65500 | ASTM | Corrosion-Resistant Components | |
| Aluminum Bronze | C60600 | ASTM | Marine Engineering |
| C60800 | ASTM | Heavy-Duty Service | |
| C61400 | ASTM | Industrial Equipment | |
| C61900 | ASTM | Pumps & Valves | |
| C62300 | ASTM | Offshore Applications | |
| C63000 | ASTM | Aerospace & Marine | |
| Nickel Silver (Copper-Nickel-Zinc) | C74500 | ASTM | Decorative & Instrumentation |
| C75200 | ASTM | Precision Components | |
| C77000 | ASTM | Industrial Applications |
FAQ
Copper pipe fittings are used to connect, branch, reduce, redirect, or terminate copper piping systems. They are widely used in plumbing, HVAC, refrigeration, fire protection, medical gas, marine, and industrial process piping.
The most common types include:

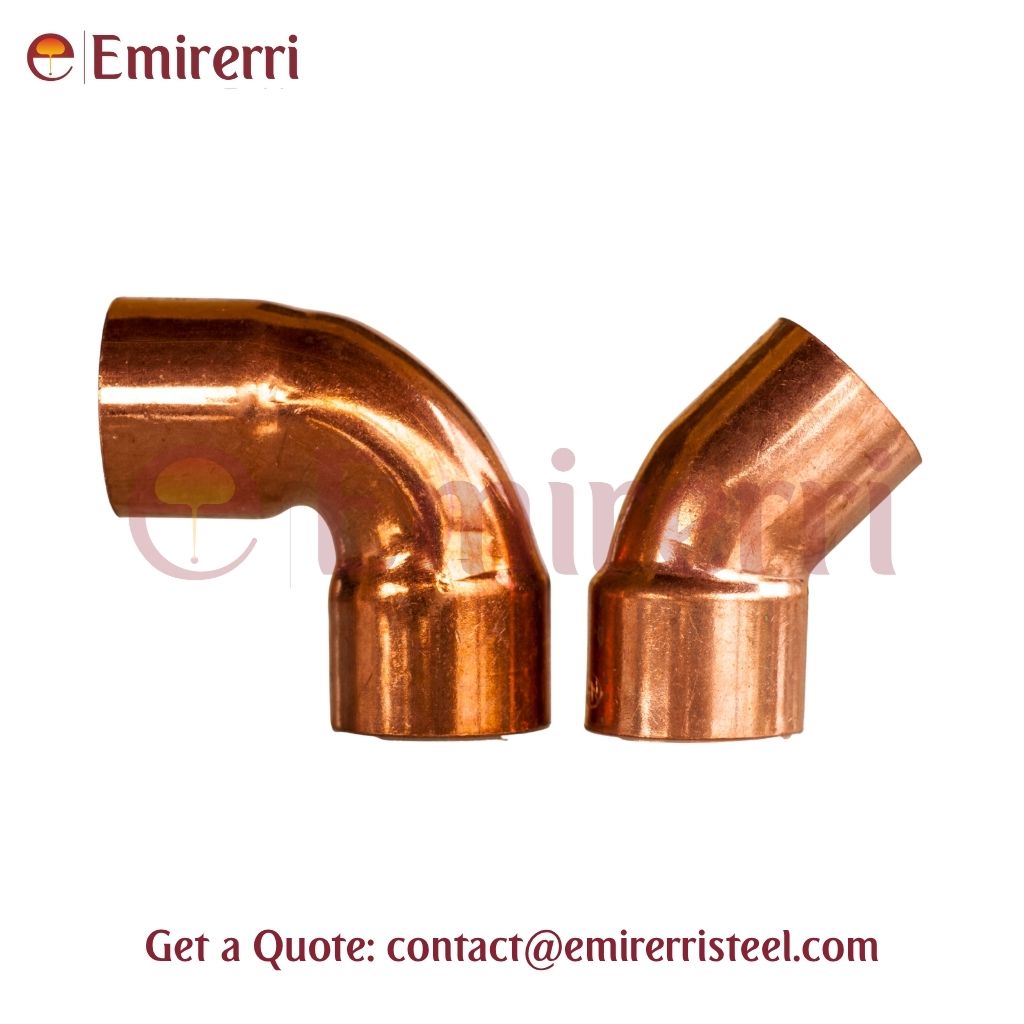

- Copper Elbows

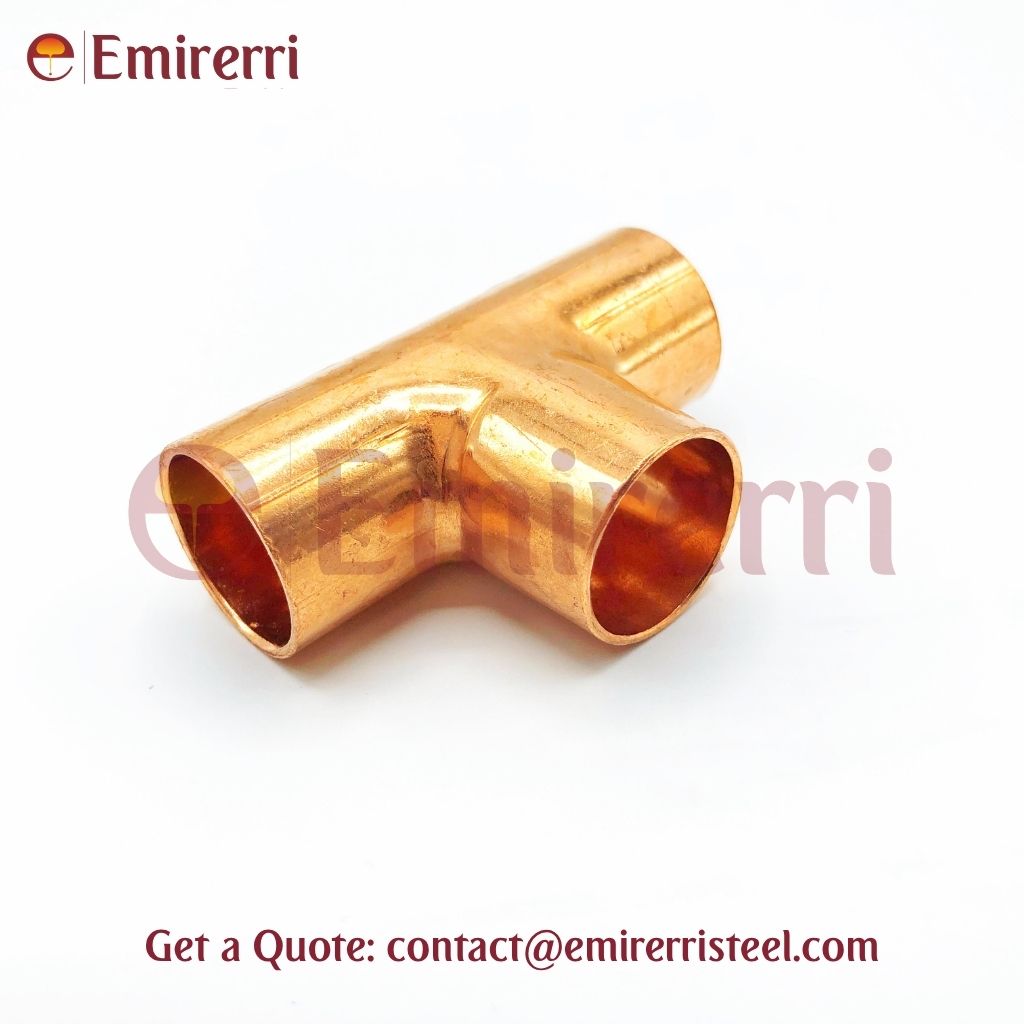

- Copper Tees

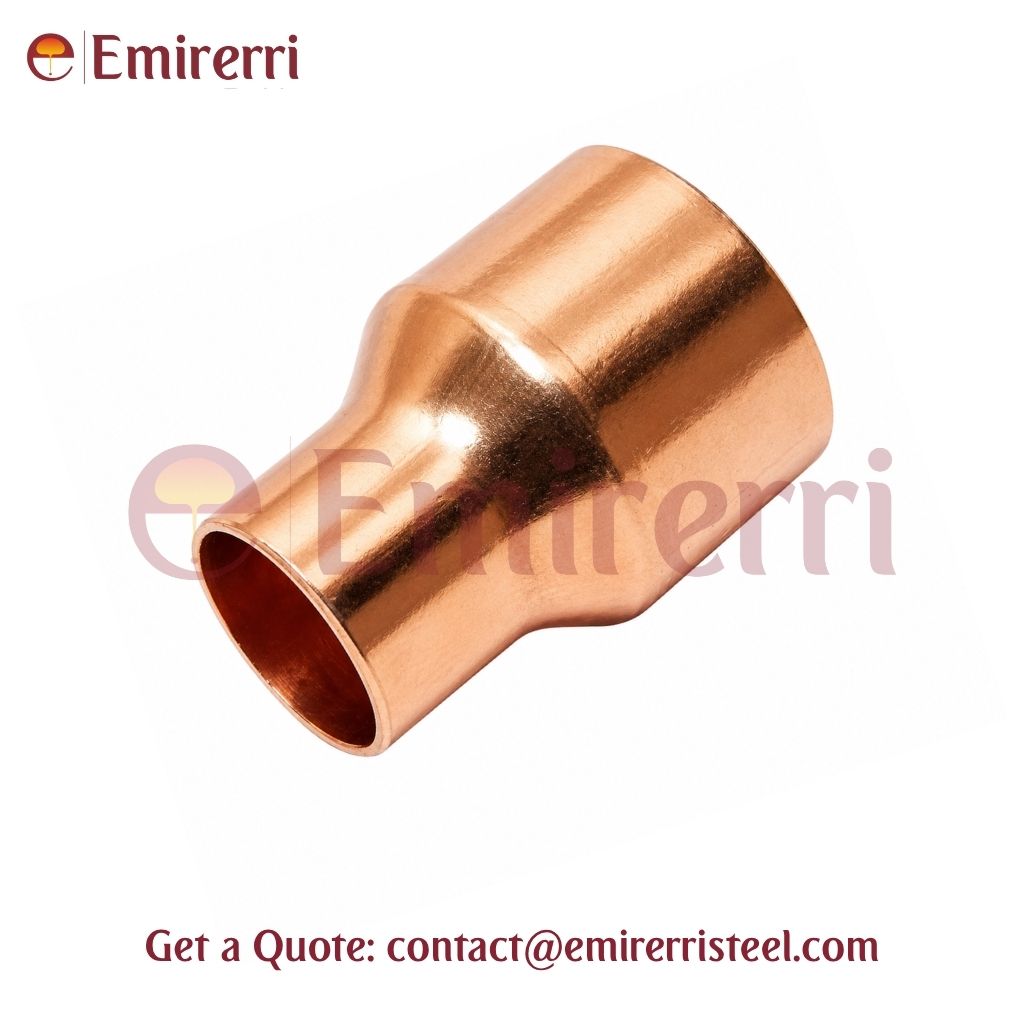

- Copper Reducers

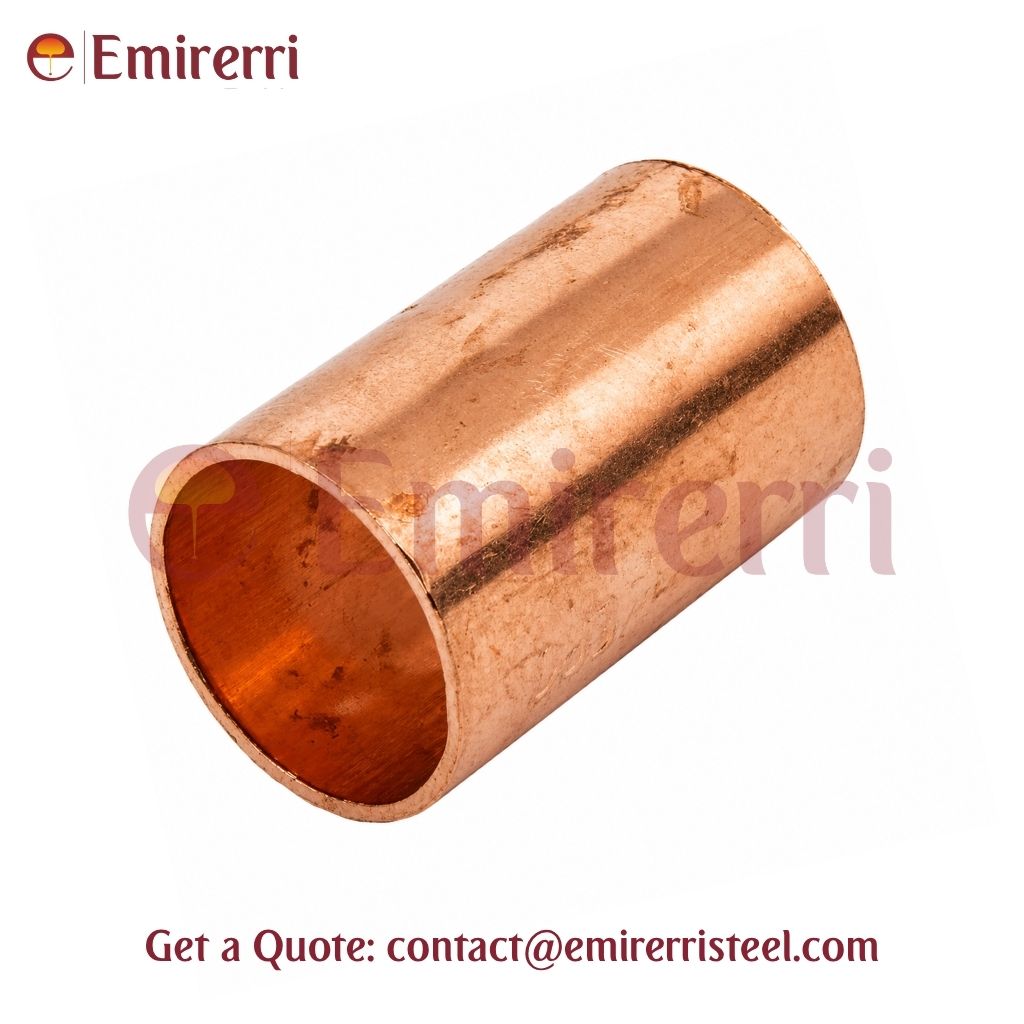

- Copper Couplings

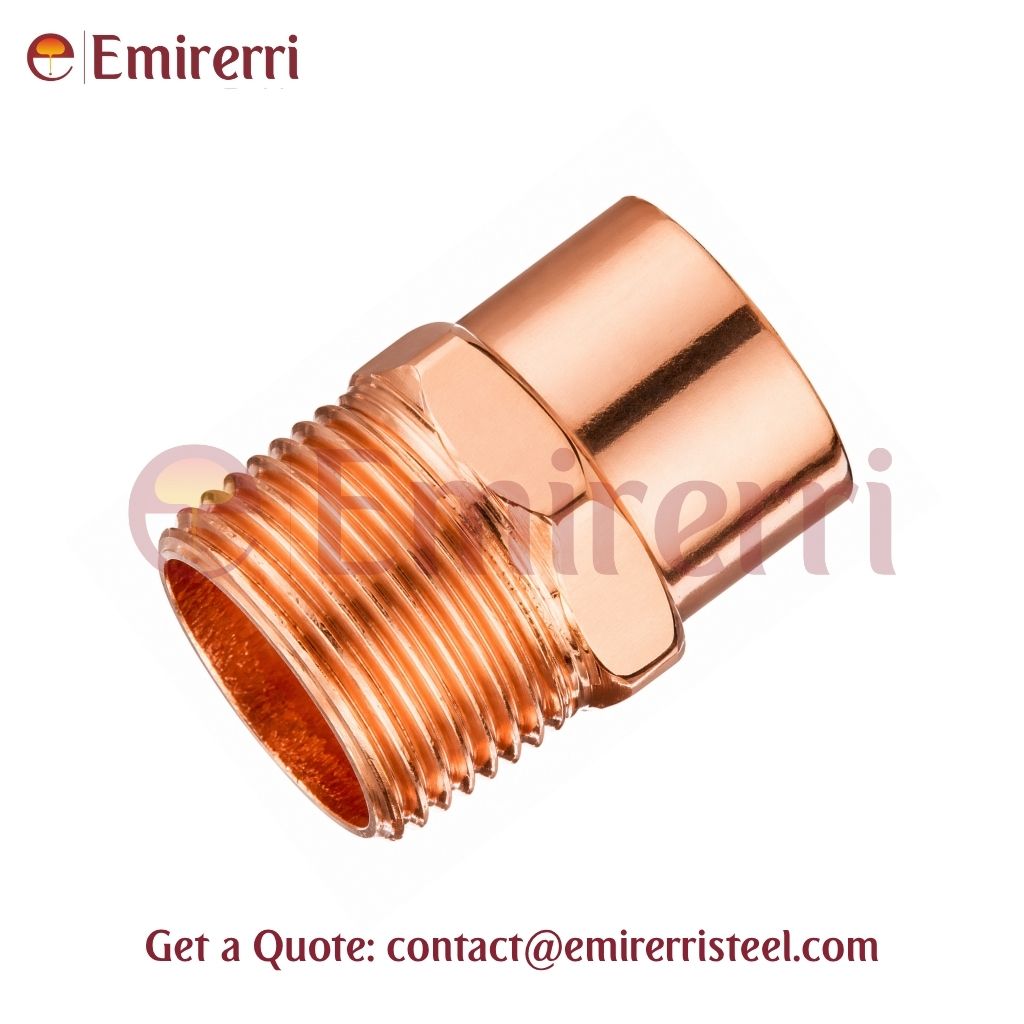

- Copper Adapters

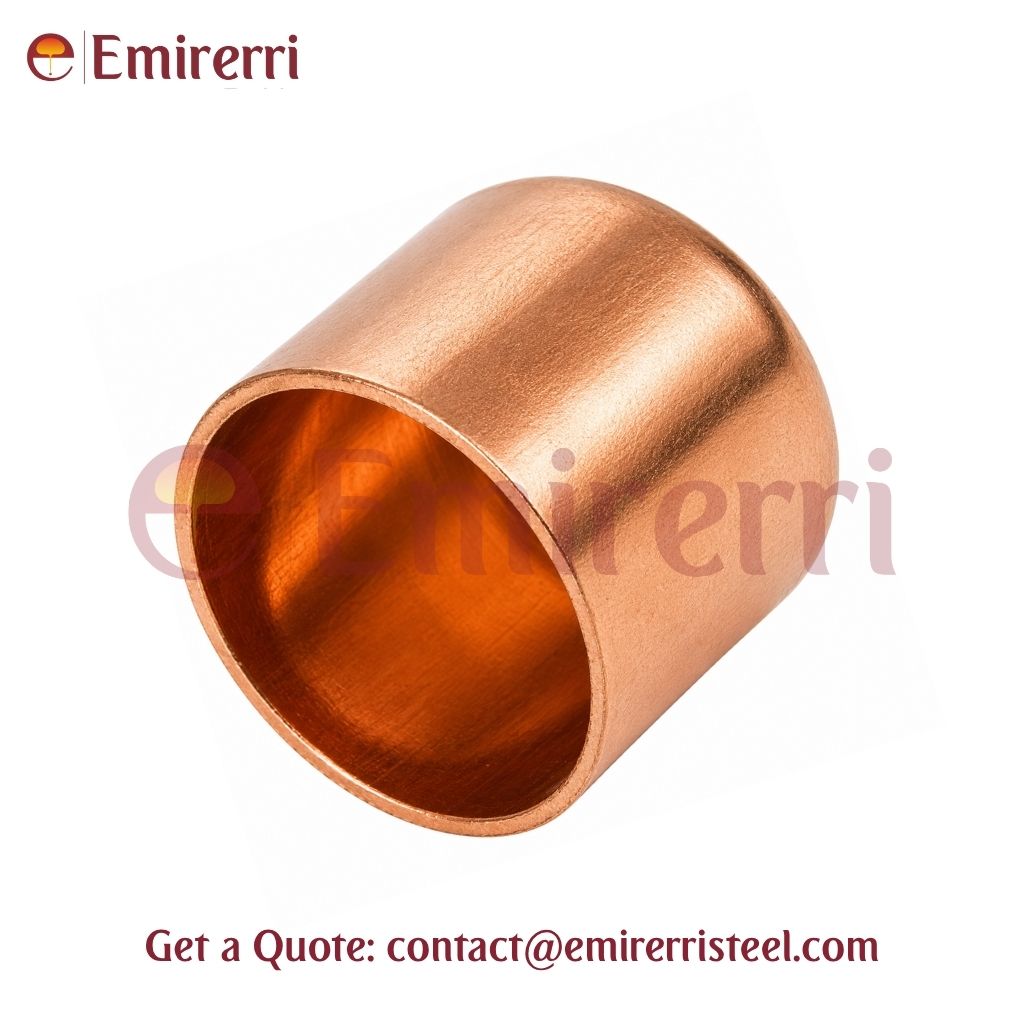

- Copper Caps and Plugs

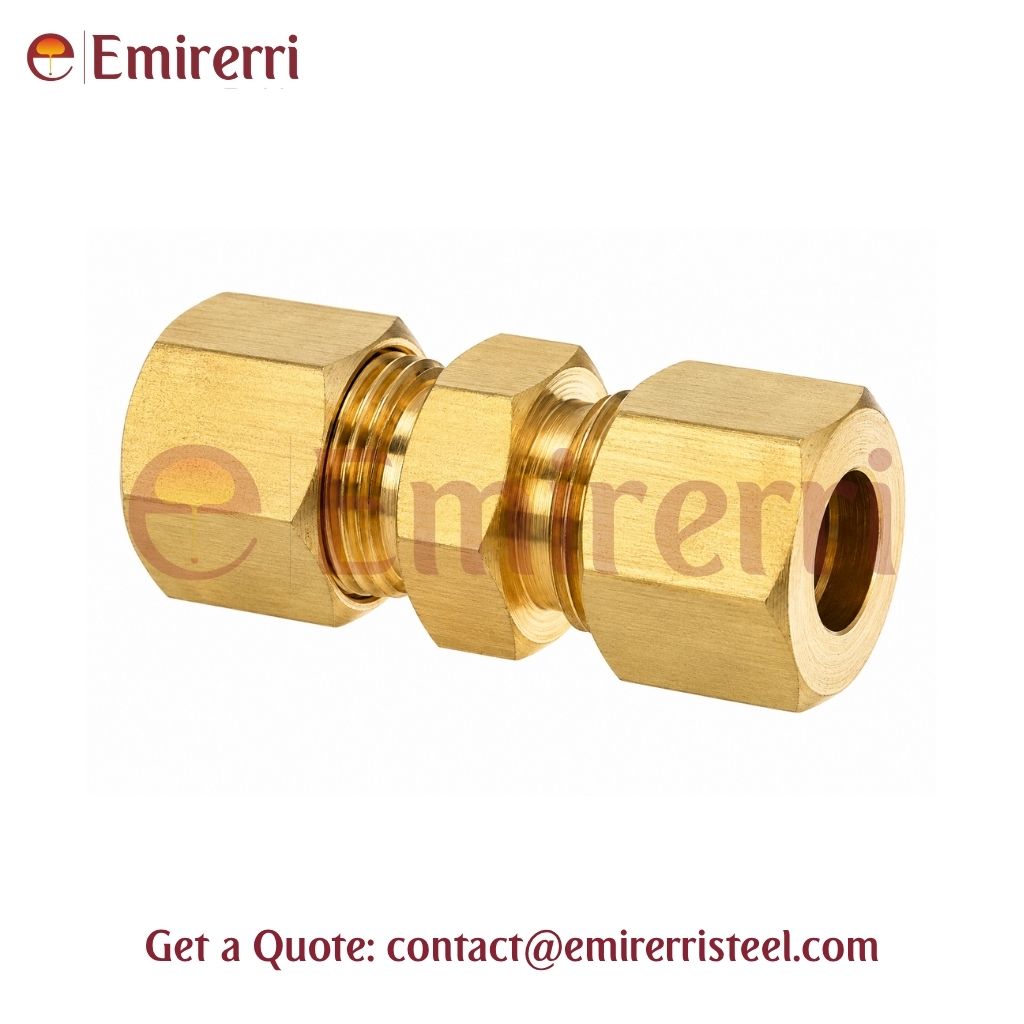

- Copper Unions
Soldering uses a lower-temperature filler metal and is commonly used for potable water and plumbing systems. Brazing uses a higher-temperature filler metal, creating stronger joints suitable for refrigeration, medical gas, and high-pressure industrial applications.
Yes. Copper pipe fittings offer excellent resistance to corrosion, scaling, UV exposure, and bacterial growth, making them ideal for long-term indoor and outdoor applications.
Copper pipe fittings can be joined using:
- Soldered (Sweated)
- Brazed
- Compression
- Press-Fit
- Threaded (Forged)
The choice depends on the operating pressure, temperature, and application.
Cupro-Nickel fittings are widely used in seawater systems, desalination plants, offshore platforms, marine engineering, power plants, condensers, and heat exchangers due to their exceptional seawater corrosion resistance.
